Throw-Over-Board Type SOLAS Inflatable Liferaft

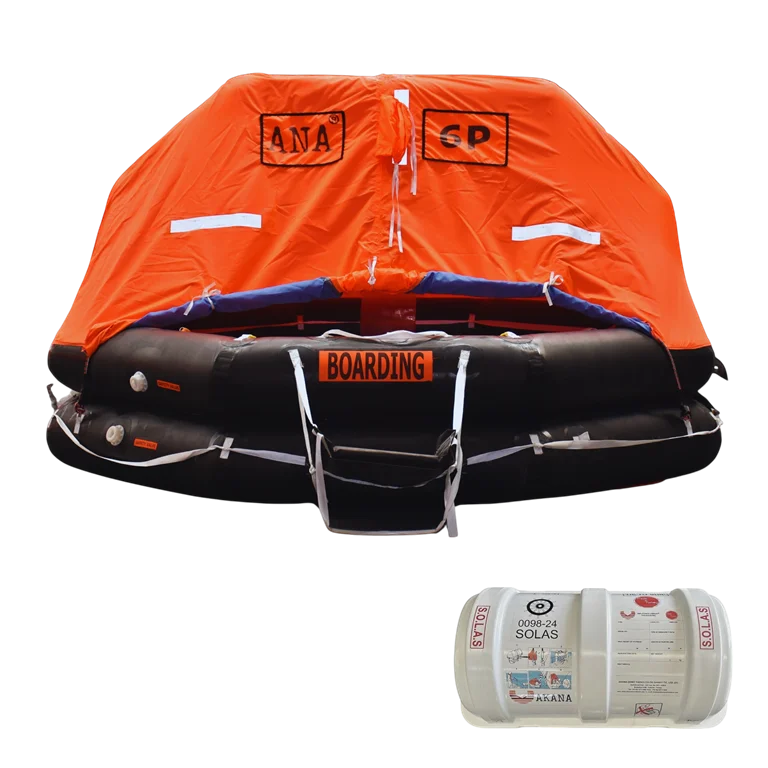

Designed for rapid emergency deployment at sea. Stowed in container, thrown overboard, and automatically inflated upon line pull or hydrostatic release.

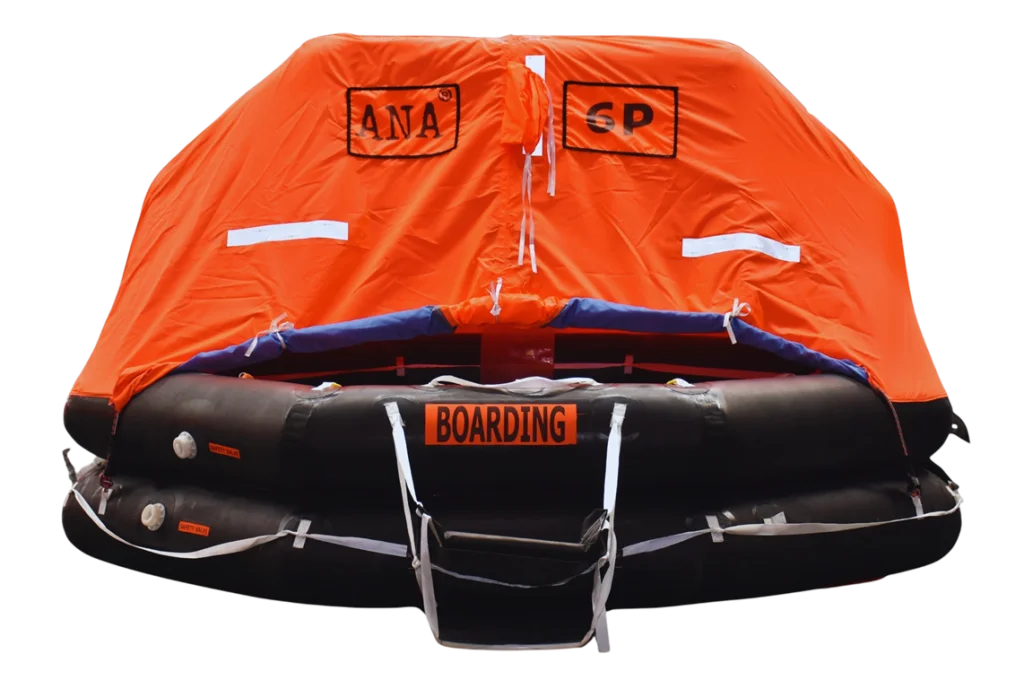

Throw-over-board SOLAS inflatable liferaft designed for 6 persons. Packaged with SOLAS A or B emergency pack.

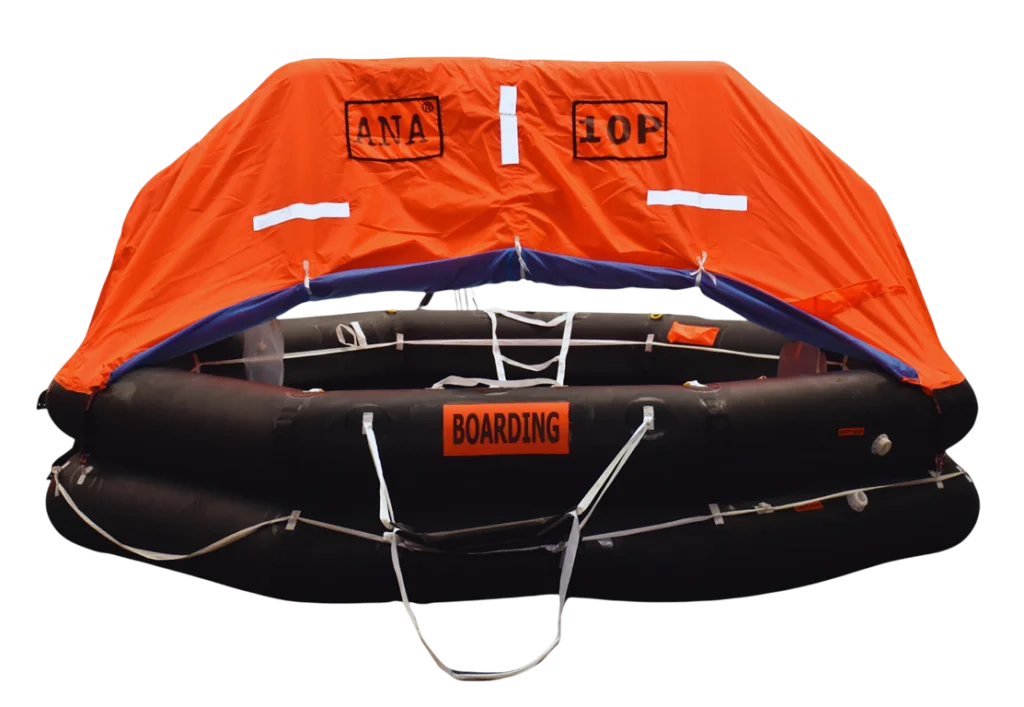

Throw-over-board SOLAS inflatable liferaft designed for 10 persons with ISO 15738 approved inflation gas system.

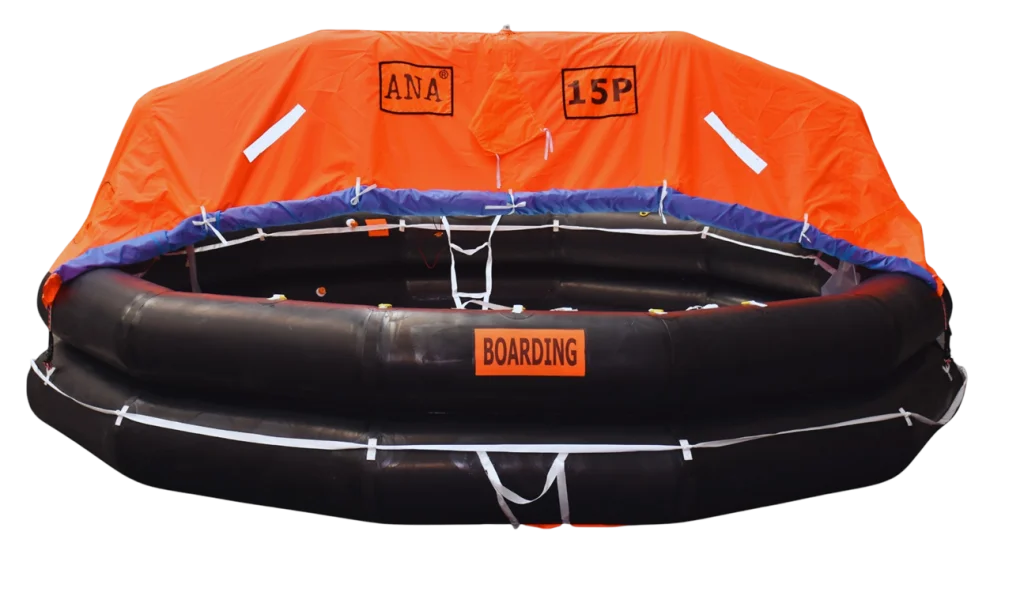

15-person throw-over-board inflatable liferaft, equipped with external weak link & hydrostatic release unit compatibility.

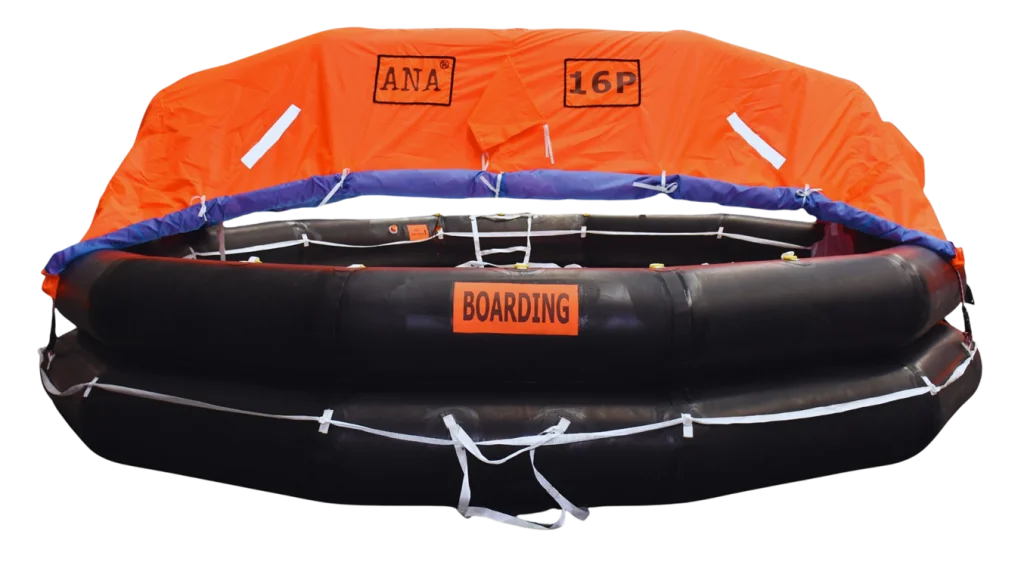

16-person throw-over-board liferaft certified under IMO MSC.81(70) Part 2 and MED 96/98/EC Module D system.

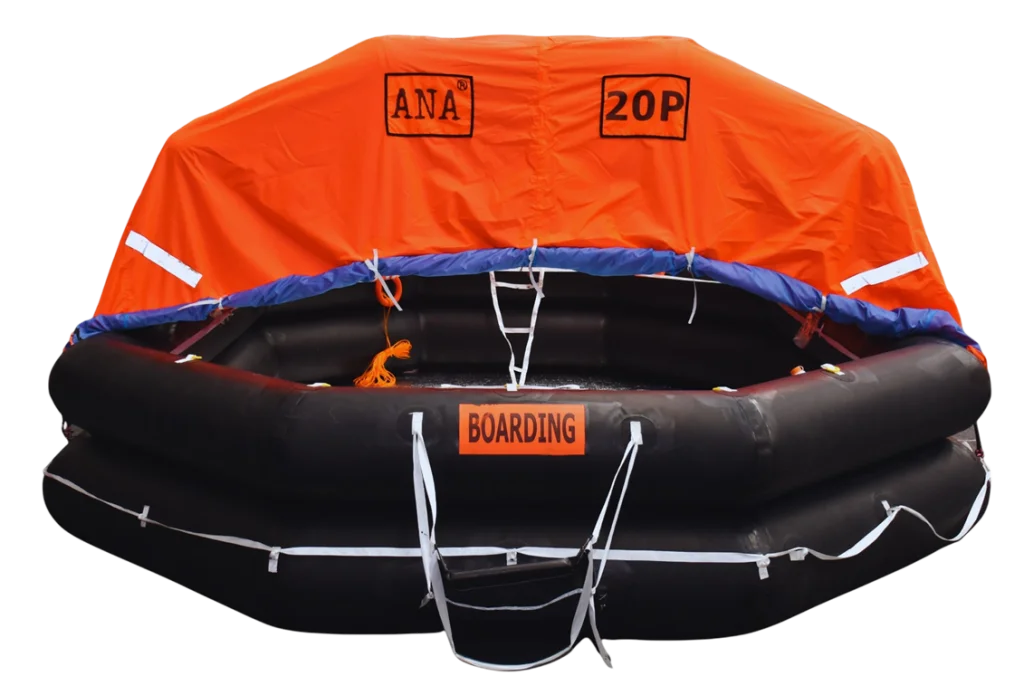

High capacity 20-person SOLAS liferaft with robust dual buoyancy tubes and weather-protective canopy.

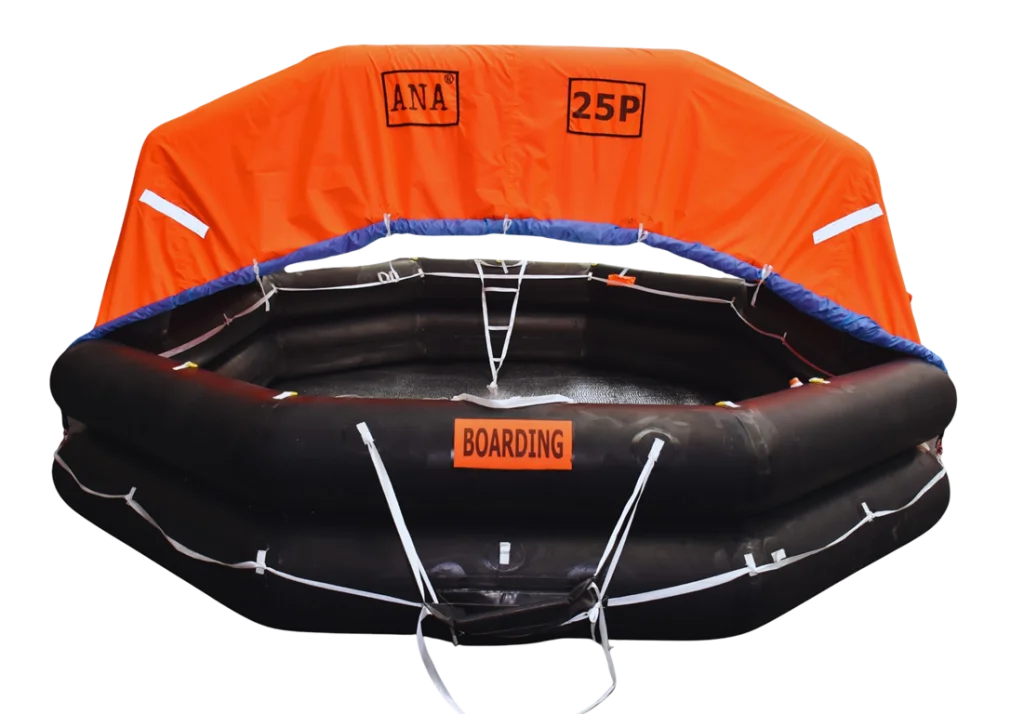

Maximum capacity 25-person SOLAS throw-over-board liferaft for large commercial and passenger vessels.
Built with military-grade standards and certified by leading maritime classification societies worldwide.
Packed with full SOLAS A Pack or SOLAS B Pack emergency rations, pyrotechnics, first aid kits, and survival gear.
Gas cylinders are of an approved type and all components in the inflation system are certified under ISO 15738:2002.
Designed for installation with external weak link and hydrostatic release unit (HRU) for automatic float-free deployment.
Production tests conducted in full accordance with IMO Resolution MSC.81(70) Part 2 and Module D Quality Assurance.
Serviced annually at manufacturer-authorized service stations. Administrations may extend service interval up to 17 months.
Fully compliant with Marine Equipment Directive 96/98/EC as amended, guaranteeing total international compliance.
Complete dimensions, weights, towing force requirements, and stowage parameters for all Ana-T models.
| Type | Rated Person | Weight (kg) SOLAS A/B | Required Bollard Pull 2 [kN] | Required Bollard Pull 3 [kN] | Max. Stowage Height |
|---|---|---|---|---|---|
| Ana-T6 6P | 6 | 75 / 63 | 0.66 | 1.18 | 30 m |
| Ana-T10 10P | 10 | 94 / 69 | 0.68 | 1.24 | 30 m |
| Ana-T15 15P | 15 | 130 / 95 | 0.85 | 1.40 | 30 m |
| Ana-T16 16P | 16 | 132 / 97 | 0.87 | 1.45 | 30 m |
| Ana-T20 20P | 20 | 155 / 110 | 1.00 | 1.65 | 30 m |
| Ana-T25 25P | 25 | 183 / 128 | 1.30 | 1.90 | 30 m |
Every Ana-T liferaft undergoes rigorous factory acceptance tests and strict compliance checks before deployment.
Contact Akana Marine Technology today for price quotes, technical specifications, and global delivery schedules. Turkey's leading DNV-certified marine safety manufacturer.
