Davit-Launched Type SOLAS Inflatable Liferaft
Designed for deck-level boarding before being lowered safely to the water via davit system. DNV and Lloyd's Register certified.

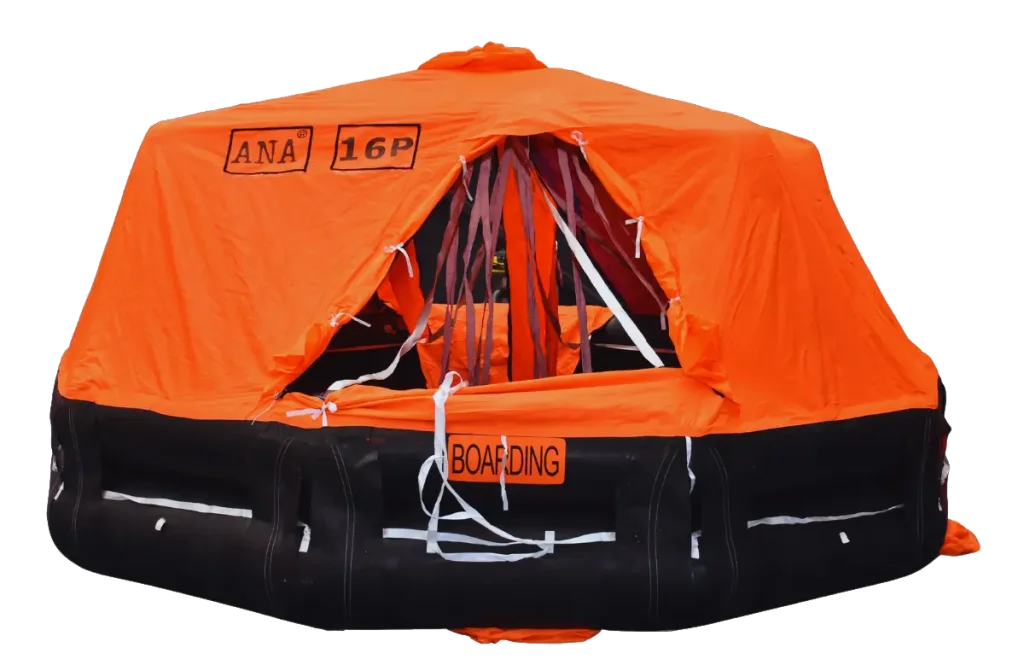

Davit-launched SOLAS inflatable liferaft designed for 15 persons. Packaged with SOLAS A or B emergency pack.
16-person davit-launched SOLAS inflatable liferaft with ISO 15738 approved inflation gas system.

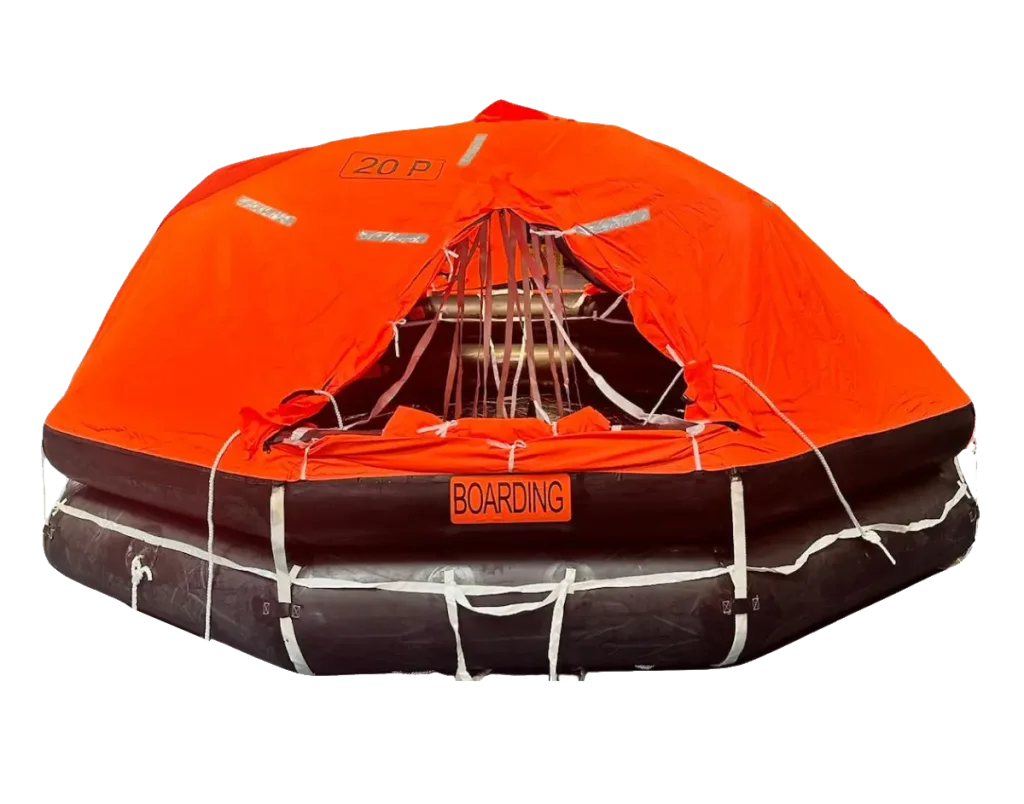

20-person davit-launched SOLAS liferaft equipped with external weak link & hydrostatic release unit compatibility.

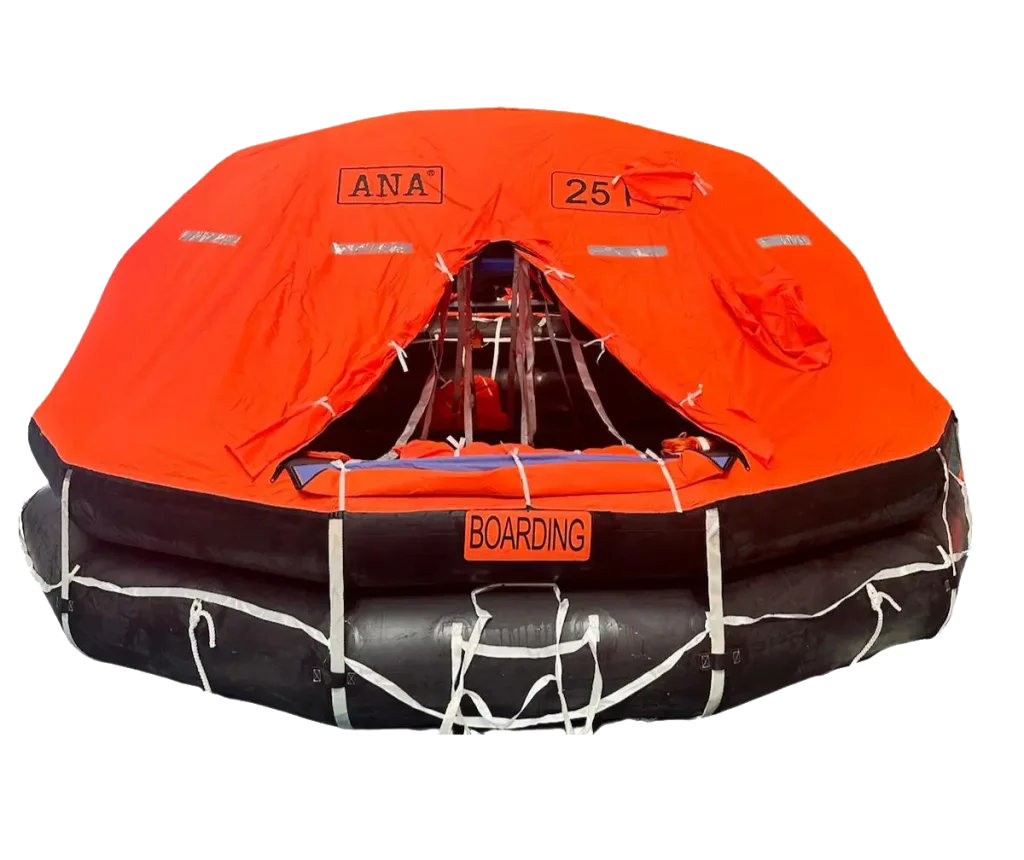

Maximum capacity 25-person davit-launched liferaft certified under IMO MSC.81(70) Part 2 and MED Module D.
Davit-launched systems allow dry boarding at deck level before lowering to sea level, offering maximum safety during high seas.
Allows all passengers and crew to board safely on deck without entering freezing sea waters, drastically reducing hypothermia risk.
Gas cylinders are of an approved type and all components in the inflation gas system comply with ISO 15738:2002 standard.
Intended to be installed with external weak link and hydrostatic release unit (HRU) for automatic float-free release when submerged.
Production tests conducted in full accordance with IMO Resolution MSC.81(70) Part 2 and Module D Quality Assurance.
Serviced annually at manufacturer-authorized service stations. Administrations may extend service interval up to 17 months.
Fully compliant with Marine Equipment Directive 96/98/EC as amended, guaranteeing total international compliance.
Complete dimensions, weights, towing force requirements, and stowage parameters for all Ana-D models.
| Type | Rated Person | Weight (kg) SOLAS A/B | Required Bollard Pull 2 [kN] | Required Bollard Pull 3 [kN] | Max. Stowage Height |
|---|---|---|---|---|---|
| Ana-D15 15P | 15 | 165 / 135 | 0.95 | 1.55 | 30 m |
| Ana-D16 16P | 16 | 168 / 138 | 1.10 | 1.80 | 30 m |
| Ana-D20 20P | 20 | 180 / 137 | 1.25 | 1.95 | 30 m |
| Ana-D25 25P | 25 | 210 / 155 | 1.45 | 2.40 | 30 m |
Every Ana-D liferaft undergoes rigorous factory acceptance tests and strict compliance checks before deployment.
Contact Akana Marine Technology today for price quotes, technical specifications, and global delivery schedules. Turkey's leading DNV-certified marine safety manufacturer.
